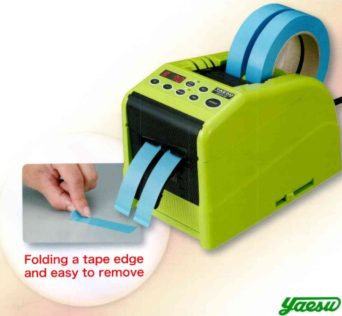

ZCUT-10
- Model TAPE DISPENSER ZCUT-10
- Code ZCUT-10
- From JAPAN
- Six different lengths can be programmed to cut
- Possible to cut two roll tapes at the same time due to Dual Photo Sensor
- Preset and loop Counter
- Tape Support to position a cut piece of tape for easy to take
- Set a tape without using bobbin
- Possible to cut non-adhesive tapes
- Build-in Separator for cutting two rolls tape, Guide Plate, and Blade Oil
| Cut Length | 5 – 999 mm |
|---|---|
| Folding Length | 7 mm |
| Tape Width | 6 – 60 mm |
| Max. Outside Dia. of Roll | 300 ㎜ |
| Tape Thickness | 0.05 mm – 0.3 mm |
| Usable Tapes | Craft, PP, Vinyl, Filament, Glass Cloth, Double-Sided, Strapping, Protective Film, Aluminum Foil, and Others |
| Feeding Speed | 220 mm sec ･Approximately 50pcs/min.(in the case of cutting 100mm with craft tape) |
| Accessories | Separator. Blade Oil. Guide Plate. Power Cord. |
| Rated Voltage | AC100V 50/60Hz 25W Fuse2A(AC inlet Build-in) |
| Dimensions | 116 mm(W)x148 mm(H)x223 mm(D) |
| Weight | 1.6kg |
