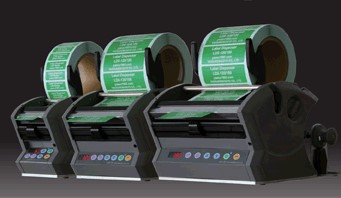

LDX-60/120/180

Compact Body No need to big place to put.
Bobbin-Less Easy to set the label roll.
Six different kinds of mode Auto/Manual mode Count Up/Count Down mode Label Setting mode Speed Setting mode
Easy to remove backing paper.
Label useable length from 10 mm to 999 mm.

Model No.	LDX-60	LDX-120	LDX-180
Power Supply	AC100V 50/60Hz
Range of Input Voltage	10%
Power Consumption	40w	45w	50w
Dimension	104W x 140H x 215D(mm)	164W x 157H x 231D(mm)	224W x 157H x 241D(mm)
Weight	2.1kg	3.3kg	4.6kg
Material	Anti-Static ABS
Range of Label Holder Adjustable Width	20mm – 60mm	20mm – 120mm	20mm – 180mm
Label Usable Width	15mm – 60mm	15mm – 120mm	15mm – 180mm
Label Usable Length	10mm – 999mm
Label Feeding Speed	100mm/s〜200mm/s（Speed setting by 6 levels） ※Up to 90pcs per minute in the case of 30mm
Maximum Roll Diameter	φ200mm	φ250mm	φ300mm
Accessories	Hexagonal Wrench for Adjustment
