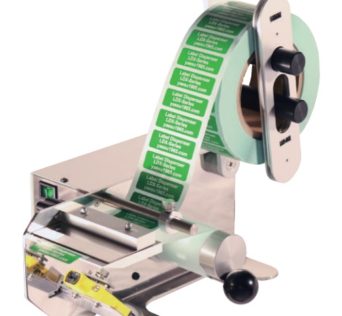

HLD2000

HLD-2000

Model Label Dispenser
Code HLD-2000
From Japan

Extremely high-speed labeler. It can cut over 130 pcs./min. (40 mm pitch label)
Durable motor that can stand 24 hours.
Very compact design fits cell-system.
Utility holder can firmly hold the label roll easily.
Thin, very thick labels and security tapes useable.
Inexpensive price although it uses stainless body to against ESD.
One-touch to adjust the photo sensor for different types of label.
Scrap winder enables to remove scrap automatically.
Simply remove scrap.

Label Length	15mm – 100mm
Width of Label Mount	10mm – 75mm
Sending Speed	130 pcs./ min. (Label pitch = 40 mm)
Roll Outside Diameter	180mm
Size	192 x 170 x 253mm (W x H x D)
Weight	4.2Kg
Power Requirements	AC100V 50/60Hz 18/20W
